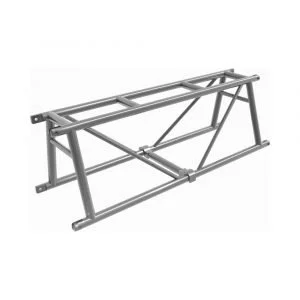

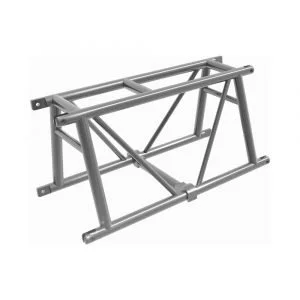

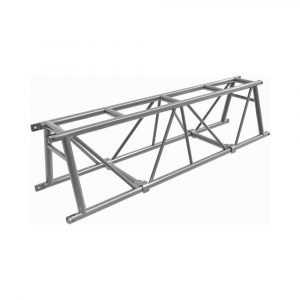

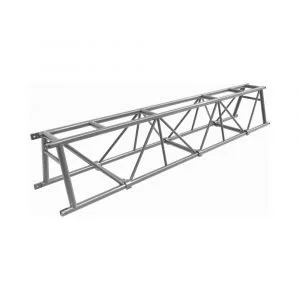

Brown’s 500mm Alloy Stacking Truss is 500mm centre to centre on the bottom chords, and only 250mm centre to centre on the top chords. The bottom chords are braced using removable snap-lock bracing bars, allowing truss sections to be stacked one on top of the other, saving huge amounts of truck and storage space.

For example, 8 x 3 metre sections of the truss can be stacked on a dolly, with the total height being only 2050mm, and the width approximately 550mm (including dolly). In standard trucks, this would allow 4 dollys to be stored side-by-side, putting 32 sections of 500mm truss into only 3m of truck space!

Because it is so easy to transport, Brown’s 500mm Alloy Stacking Truss is perfect for small shows, but is also designed with large shows in mind. The enormous weight loading allows the stacking truss to be used for 18 metre spans while still supporting useful loads. Full engineering specifications are available upon request.
